Thermoplastic material series melt pump
The BATTE ZB-B series transparent material thermoplatic melt pump is mainly used for the smooth pressurized transportation of polymers from low viscosity to extremely high viscosity polymer melt viscosity media. Generally installed between the outlet of the extruder and the die head, used as a melt metering pump; It can also be installed in polymer melt pipelines for use as a booster pump. It is widely used in various extrusion industries, such as sheet, sheet, pipe, film, granulation, wire drawing, cable, co extrusion, mixing, precision extrusion, etc. Suitable for extrusion processes of thermoplastic materials such as PS, PP, PVC, PC, PMMA, etc.

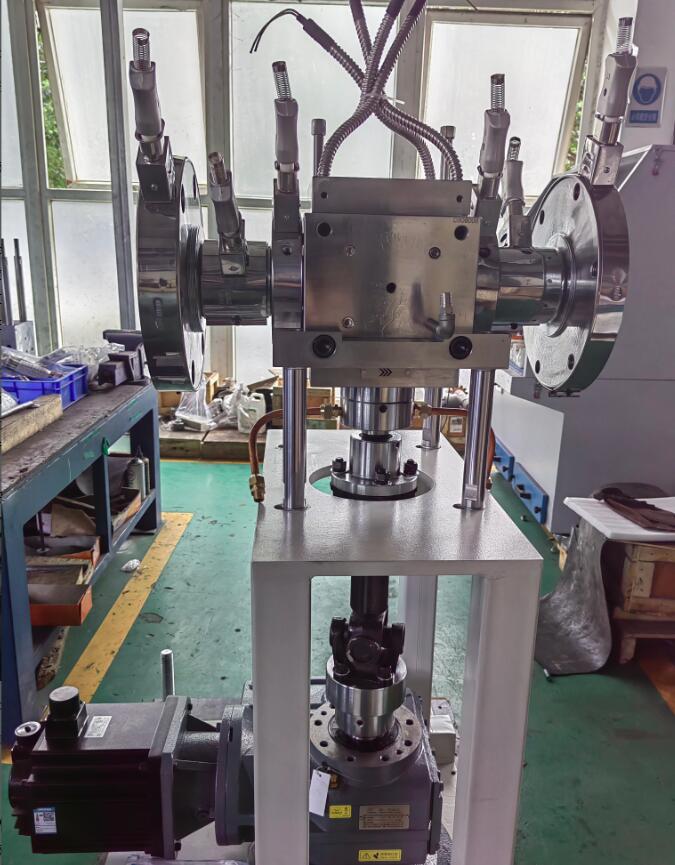

thermoplatic melt pump
The main characteristics of the melt pump for extruder are:
1. It can be applied to high temperature (350 ℃), high pressure (35MPa), high viscosity (20000Pas) working conditions;
2. The bell mouth design of the inlet and outlet greatly avoids dead corners in the flow channel, reduces material residue, and improves product quality.
3. Improved gear parameter design makes output pressure more stable, reduces temperature rise, and is suitable for precision extrusion.
4. Adopting special materials and wear-resistant coatings, it has high smoothness, good wear resistance, and long service life.
5. Adopting high-precision mechanical seals.
6. Suitable installation methods can be provided according to different on-site situations of customers, making them more flexible and practical.

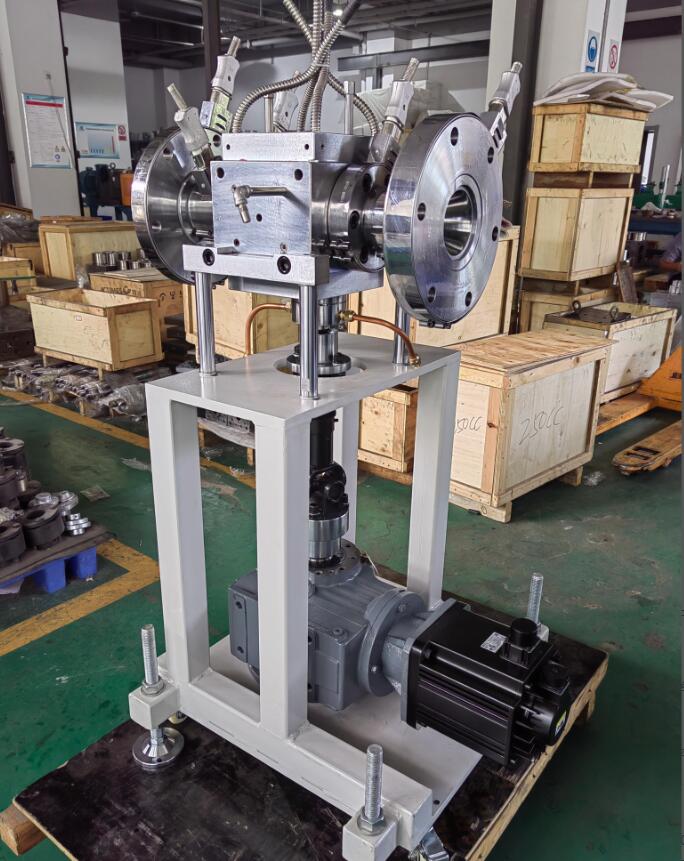

pump melt gear pump for plastic extruder
Pump melt gear pump for plastic extruder technical parameters:
Transmission medium viscosity: 200~20000Pa · s (2000~20000000cP)
Inlet pressure: 0-30MPa
Outlet pressure: 0-40MPa
Large pressure difference: 25MPa
Operating temperature: ≤ 350 ℃
Heating method: electric heating
Specification/flow range: 10CC-3200CC
